CABINE PER TOMOGRAFIA METROLOGICA 3D - CHEETAH EVO

CND - Controlli non Distruttivi > Tomografia ad Alta Potenza > > Schede Yxlon

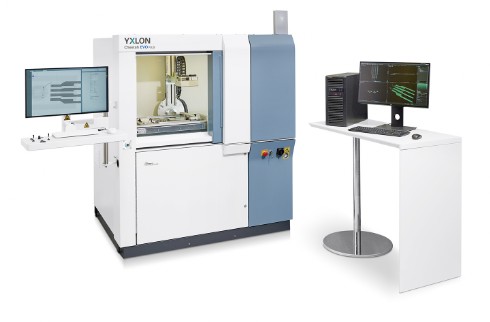

CHEETAH EVO

Microfocus/Nanofocus X-ray Inspection System for PCBA and Semiconductors
YXLON Cheetah is a performance and efficiency oriented microfocus and nanofocus X-ray inspection system for the printed circuit board assembly (PCBA) and semiconductors industries. Get the highest resolution 2D and 3D imaging results.


Tomografia controllo componenti di vario genere
    • Exceptional 2D/3D image quality in the shortest time
    • User-friendly operation for high-tech inspections
    • One-click solutions for advanced manipulations
    • Best-in-class DR technology
    • Industrial quality computed tomography (CT) upgrade option


Funzionalità di sistema


  • SMT and PTH assemblies
  • PCBs
  • IGBTs


Benefits for SMT
  • Accurate, fast, and repeatable inspection - manually and automatically
  • High power, high resolution inspection of very small features
  • Easy to use, dynamic image enhancing filters, e.g. eHDR


Software
  • eHDR-Inspect
  • Improved, user friendly FGUI
  • Multi Area Void Calculation
  • Extended BGA Inspection
  • Extended ADR

            System Highlights
            Cheetah EVO SMT harnesses the combined power of several YXLON innovations - FeinFocus X-ray tube technology, High Power Target technology, a finely calibrated, long-life flat-panel detector, and a manipulator with cushioned bearings. The variety of sample tables ensures that it can generate 2D and 3D images in extremely high resolution.
            In addition to imaging excellence, you can look forward to simple, user-friendly controls and YXLON FGUI - FeinFocus Graphical User Interface - software, not to mention the myriad benefits of comprehensive automation. One-click solutions make manual inspections effortless, while Easy Teach-In makes it simple to program the automated procedures that guide the operator swiftly through inspections - and deliver repeatable and reliable results.
            Cheetah EVO SMT can be upgraded for CT with the optional microCT module. This enables CT for industrial quality assurance, with in-depth 3D examination of inspection items via virtual cross sections and layers. With its user-friendly YXLON QuickScan® module, it delivers 3D images and virtual slices within a minute.
            Funzionalità di sistema

            • Wafer inspection
            • 3D integrated circuit joints
            • Microbumps
            • Sensors
            • MEMS and MOEMS
            • TSVs
            Benefits for Semiconductors
            • Accurate, repeatable void compilations, including multi area voiding
            • Excellent resolution at low power and low kV
            • Fast, automated, easy routines
            • Very fast live (on the fly) inspections

            Software
            • eHDR-Inspect
            • User friendly FGUI
            • Multi Area Void Calculation
            • Extended BGA Inspection
            • Extended ADR

            System Highlights
            Cheetah EVO Semi harnesses the combined power of several YXLON innovations - FeinFocus X-ray tube technology, High Power Target technology, a finely calibrated, long-life flat-panel detector, and a manipulator with cushioned bearings. The variety of sample tables ensures that it can generate 2D and 3D images in extremely high resolution.
            In addition to imaging excellence, you can look forward to simple, user-friendly controls and YXLON FGUI - FeinFocus Graphical User Interface - software, not to mention the myriad benefits of comprehensive automation. One-click solutions make manual inspections effortless, while Easy Teach-In makes it simple to program the automated procedures that guide the operator swiftly through inspections - and deliver repeatable and reliable results.
            Cheetah EVO Semi can be upgraded for CT with the optional microCT module. This enables CT for industrial quality assurance, with in-depth 3D examination of inspection items via virtual cross sections and layers. With its user-friendly YXLON QuickScan® module, it delivers 3D images and virtual slices within a minute.
            Funzionalità di sistema

            • Batteries
            • Connectors
            • Various hard-to-see electronic components
            • Medical material
            • Military and space electronics

            Benefits for Laboratory
            • Ultimate quality resolution for failure analysis applications
            • High-performance CT inspection for all demanding applications
            • Highest industry CT reconstructions with VGStudio and Siemens Software

            Software
            • eHDR-Inspect
            • Improved, user friendly FGUI
            • CT reconstruction VGStudio and Siemens Software

            System Highlights
            Cheetah EVO Plus harnesses the combined power of several YXLON innovations - FeinFocus X-ray tube technology, High Power Target technology, a finely calibrated, long-life flat-panel detector, and a manipulator with cushioned bearings.
            The variety of sample tables ensures that it can generate 2D and 3D images in extremely high resolution.
            In addition to imaging excellence, you can look forward to simple, user-friendly controls and YXLON FGUI - FeinFocus Graphical User Interface - software, not to mention the myriad benefits of comprehensive automation.
            One-click solutions make manual inspections effortless, while Easy Teach-In makes it simple to program the automated procedures that guide the operator swiftly through inspections - and deliver repeatable and reliable results.

            Cheetah EVO Plus comes standard with CT and a microCT module. This enables CT for industrial quality assurance, with in-depth 3D examination of inspection items via virtual cross sections and layers. With its user-friendly YXLON QuickScan® module, it delivers 3D images and virtual slices within a minute.



            .

            Dati Tecnici
            Attributo
            Composizione
            Diametro Campione
            800 x 500 [mm]
            Dimensione Impianto
            2990 x 1550 x 2220 [mm]
            Massima Potenza del tubo
            64 [W]
            Tubo raggi-X
            FXE 160 kV micro focus
            Tempo per Prima Immagine
            ~10 [s]
            µCT Tempo Scansione
            ~7 [s]
            Massima Amplificazione Geometrica
            2000 X
            Stabilizzazione Immagine
            Air Suspension





            .
            -
